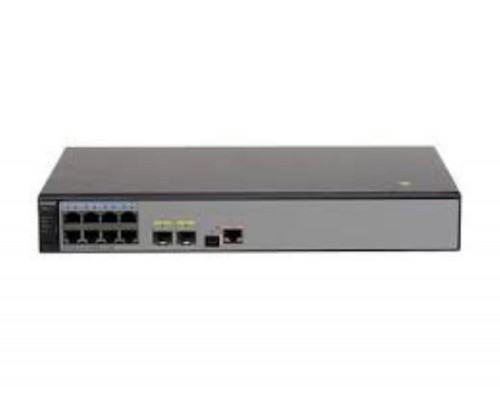

Коммутатор Huawei S5700-10Р-LI-AC

S5700-10P-LI-AC
• 8x10/100/1000Base-T Ethernet ports, 2xGE SFP ports
• AC power supply
• Forwarding performance: 15 Mpps
• Switching Capacity: 256 Gbps
Fixed ports 8x10/100/1000Base-T Ethernet ports, 2xGE SFP ports
MAC address table
MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC learning limiting 16K MAC address entries
VLAN features
4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces 1:1 and N:1 VLAN mapping
Jumbo frame 10K
Reliability
RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s) BPDU protection
